The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction

The large scale Angle steel punching and shearing machine with CNC punching, marking and wire cutting is used for steel structure bridge construction

Applicable Industry:

The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.


Specifications:

Product Composition:

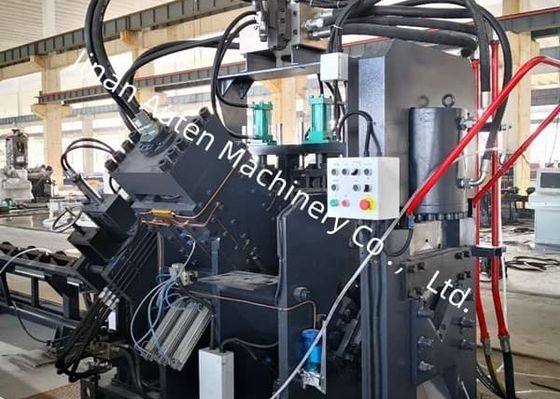

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.






Our professional Angle steel integrated processing equipment helps power tower manufacturers efficiently handle large and high-strength Angle steel.

This integrated solution combines automatic punching, precise marking and efficient shearing, comprehensively optimizing the production process of all connecting parts from the tower body to the support. It significantly enhances assembly accuracy, connection reliability and structural durability, ensuring that the transmission tower maintains excellent stability and reliability even in extremely harsh environments.

We are willing to be your reliable partner in power infrastructure manufacturing, safeguarding your solid projects.
