Product Introduction:

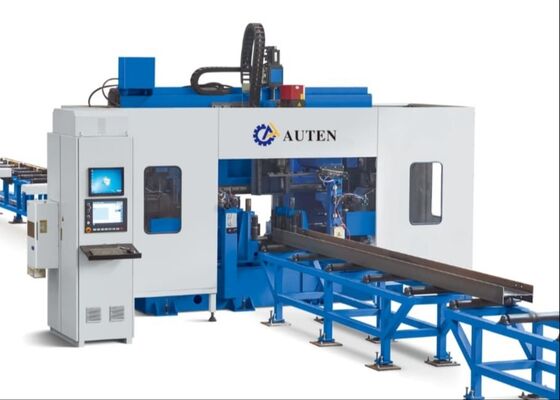

BHD series machine is a Drilling machine for Beams up to 1250mm wide by 600mm high. This machine is mainly used for processing holes on H-beam, Channel beam, Angle and Rectangular Tube. The positioning, feeding of three spindles are all driven by servo motors. It adopts Spindle driven by reducer, Servo motor feeding, and in-feeding by CNC Carriage; and it is wildly used in Construction, Bridge and other industries

Product configuration information:

APPLICATION:

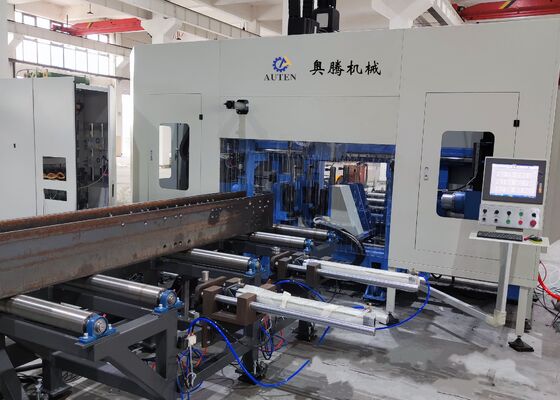

This machine is mainly used for drilling H-beam, channel steel and box beam, and is widely used in steel fabrication buildings, bridges, three-dimensional garages and other industries. The 7-axis CNC section steel 3D drilling machine adopts seven servo motors to realize drilling positioning in two vertical directions, one horizontal direction and one longitudinal direction and servo feeding of three spindles. There are 3 drilling surfaces, each with 1 drilling spindle, and 1 drilling spindle on each surface is driven by a frequency conversion motor. The drilling spindle is a servo feeding drilling spindle. When the hole diameter of the workpiece is 1, the holes on the three sides of the workpiece can be processed after passing through the machine at one time, with high efficiency and high hole position accuracy. It is an indispensable machine to ensure quality in the steel fabrication manufacturing industry.

Main Features of CNC Beam Drilling Line:

1. Infeed conveyor & Feeding Carriage-Fast, Reliable & Precision
2. Option of Transverse conveyor & Loading System-High Efficiency
3. Option of Disk Marking Unit-38 Marking Characters Auto Chosen
4. Drilling Unit-Each Spindle Movable Freely On X Axis Within 520mm

5. Machine Body-Strong Structure, High rigidity & High Stability
6. Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7. Hydraulic Unit & Cooling System-Hydraulic Clamp for Beam& Air Cooling System/ Air Conditione
8. Hydraulic station choose water cooling

COLD PROCESSING: H beam drilling machine is used for steel profileconnecting plate hole group drilling.

OVERALL STRUCTURE: The external shafts are driven by servo motors and areguided by precise linear guides to ensure the overalloperation accuracy.

FEED ROLLER FRAME: It is mainly composed of five sets of roller racks,unpowered rollers, and side positioning wheels.Simple structure, simple operation, high feeding precisionand high efficiency.

FINISHED WORKPIECESTORAGE AREA: The workpiece is feeding from drilling unit and then onpower roller driven by motor and chain and then thefinished product is directly stored by four sets of trolleys.

AUTO FEEDING: Intelligent clamping, saving labor. The trolley track usesprecision guide rails and racks, and the feeding is stableand accurate.

EASY OPERATION: Online and offline programming methods;External information exchange through U disk; supportTEKLA three-dimensional software DSTV files, directlyexport processing programs.

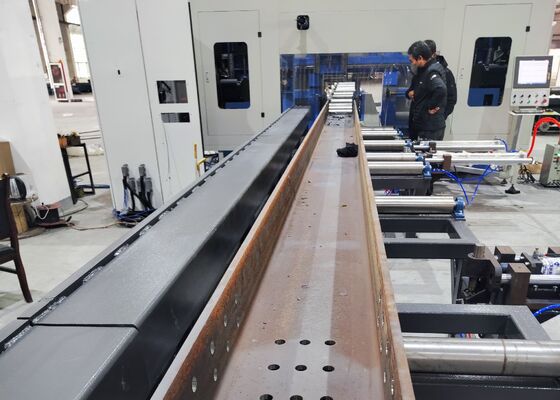

During sample demonstration sessions, the CNC beam and sheet metal drilling, marking, and shearing machine effectively illustrates its processing capabilities when handling standard H-beam samples—featuring various flange widths and web thicknesses—as well as channel steel samples of different dimensions. The specimens presented in these demonstrations distinctly showcase the equipment’s capacity to achieve precise hole placement, clean tapped threads, and well-defined marking patterns, thereby thoroughly demonstrating its exceptional accuracy and reliability in practical application scenarios.

This machine is mainly used for processing holes on H-beam, channel beam with high speed. It adopts spindle servo motor, controls by CNC system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in construction, bridge and other industries.
